1. 前言

x86 环境下的操作可以参考

ARM 环境主要基于信创要求，以下内容参照政务云提供的安装文档进行部署

1.1. 软件环境

软件	版本
操作系统	Kylin Linux Advanced Server V10 (Halberd) SP3
Docker	28.0.4
Kubernetes	1.28.15

服务器整体规划：

角色	IP	组件
k8s-master1	192.168.120.51	kube-apiserver，kube-controller-manager，kube-scheduler，etcd,kubelet，kube-proxy，docker
k8s-master2	192.168.120.52	kube-apiserver，kube-controller-manager，kube-scheduler，etcd,kubelet，kube-proxy，docker
k8s-master3	192.168.120.53	kube-apiserver，kube-controller-manager，kube-scheduler，etcd,kubelet，kube-proxy，docker
k8s-node1	192.168.120.54	kubelet，kube-proxy，docker , keepalived+ nginx
k8s-node2	192.168.120.55	kubelet，kube-proxy，docker, keepalived+ nginx
k8s-node3	192.168.120.56	kubelet，kube-proxy，docker, keepalived+ nginx
VIP	192.168.120.50

2. 操作系统初始化配置

在所有的主机操作系统上执行

2.1. 安装依赖包

yum install -y conntrack-tools conntrack ntpdate ntp ipvsadm ipset iptables curl sysstat libseccomp vim net-tools rpcbind nfs-utils

2.2. 集群 ip 映射

# shell：
ip_addr=$(ip addr show | grep -E 'inet.*brd' | grep -v '127.0.0.1' | awk '{print $2}' | cut -d '/' -f1 | head -n 1)
if [ -z "$ip_addr" ]; then
    echo "无法获取有效的IPv4地址"
else
    echo "检测到IP地址: $ip_addr"
    # 提取IP的最后一段
    ip_last_octet=$(echo "$ip_addr" | awk -F '.' '{print $4}')
    # 构造目标hostname
    target_hostname="host${ip_last_octet}"
    # 设置hostname
    hostnamectl set-hostname "$target_hostname"
    if [ $? -eq 0 ]; then
        echo "$target_hostname" > /etc/hostname
    fi
fi

cat >> /etc/hosts << EOF
192.168.120.51 host51
192.168.120.52 host52
192.168.120.53 host53
192.168.120.54 host54
192.168.120.55 host55
192.168.120.56 host56
EOF

2.3. 关闭防火墙,关闭 selinux，禁用 swap 分区

systemctl stop firewalld
systemctl disable firewalld

sed -i 's/SELINUX=enforcing/SELINUX=disabled/' /etc/selinux/config
setenforce 0 && sed -i 's/^SELINUX=.*/SELINUX=disabled/' /etc/selinux/config && getenforce

swapoff -a && sed -i '/ swap / s/^\(.*\)$/#\1/g' /etc/fstab

2.4. 禁用 linux 的透明大页、标准大页

echo never > /sys/kernel/mm/transparent_hugepage/defrag
echo never > /sys/kernel/mm/transparent_hugepage/enabled
echo 'echo never > /sys/kernel/mm/transparent_hugepage/defrag'  >> /etc/rc.local
echo 'echo never > /sys/kernel/mm/transparent_hugepage/enabled'  >> /etc/rc.local

chmod +x /etc/rc.d/rc.local

2.5. 文件数设置

ulimit -SHn 65535
cat >> /etc/security/limits.conf << EOF
* soft nofile 655360
* hard nofile 131072
* soft nproc 655350
* hard nproc 655350
* soft memlock unlimited
* hard memlock unlimitedd
EOF

2.6. linux 内核参数调优

配置内核路由转发及网桥过滤

#将桥接的IPv4流量传递到iptables的链
cat > /etc/sysctl.d/k8s.conf << EOF

#开启网桥模式【重要】
net.bridge.bridge-nf-call-iptables=1

#开启网桥模式【重要】
net.bridge.bridge-nf-call-ip6tables=1
net.ipv4.ip_forward=1
net.ipv4.tcp_tw_recycle=0

# 禁止使用 swap 空间，只有当系统 OOM 时才允许使用它
vm.swappiness=0

# 不检查物理内存是否够用
vm.overcommit_memory=1

# 开启 OOM
vm.panic_on_oom=0
fs.inotify.max_user_instances=8192
fs.inotify.max_user_watches=1048576
fs.file-max=52706963
fs.nr_open=52706963

#关闭ipv6【重要】
# net.ipv6.conf.all.disable_ipv6=1
# net.netfilter.nf_conntrack_max=2310720

# 下面的内核参数可以解决ipvs模式下长连接空闲超时的问题
net.ipv4.tcp_keepalive_intvl = 30
net.ipv4.tcp_keepalive_probes = 10
net.ipv4.tcp_keepalive_time = 600
EOF

sysctl --system

2.7. 加载网桥过滤模块

modprobe br_netfilter
cat > /etc/sysconfig/modules/ipvs.modules <<EOF
#!/bin/bash
modprobe -- ip_vs
modprobe -- ip_vs_rr
modprobe -- ip_vs_wrr
modprobe -- ip_vs_sh
modprobe -- nf_conntrack
modprobe -- br_netfilter
EOF

chmod 755 /etc/sysconfig/modules/ipvs.modules && bash /etc/sysconfig/modules/ipvs.modules && lsmod | grep -e ip_vs -e nf_conntrack_ipv4

# 查看网桥过滤模块是否成功加载
lsmod | grep br_netfilter

# 重新刷新配置
sysctl -p /etc/sysctl.d/k8s.conf

# 保证在节点重启后能自动加载所需模块
cat >> /etc/rc.d/rc.local << EOF
bash /etc/sysconfig/modules/ipvs.modules
EOF

chmod +x /etc/rc.d/rc.local

2.8. 时间同步

yum install ntpdate -y

#ntpdate time.windows.com
ntpdate ntp1.aliyun.com

# 或者配置crontab执行:
# `crontab -e`
# 0 */1 * * * /usr/sbin/ntpdate ntp1.aliyun.com

echo "0 */1 * * * /usr/sbin/ntpdate ntp1.aliyun.com" >> /var/spool/cron/root

reboot 重启虚拟机，配置生效。

3. 部署 Etcd 集群

3.1. 准备证书

cfssl 是一个开源的证书管理工具，使用 json 文件生成证书，相比 openssl 更方便使用,找任意一台服务器操作，这里用 Master01 节点。

Master01 节点上生成证书

1.获取 cfssl 工具

https://github.com/cloudflare/cfssl/releases

mkdir -p /data/k8s-work
cd /data/k8s-work

# 把下载好的cfssl工具上传到服务器
[root@host51 k8s-work]# ls -l
总用量 25164
-rw-r--r-- 1 root root 11534488  8月 13 10:22 cfssl_1.6.5_linux_arm64
-rw-r--r-- 1 root root  8126616  8月 13 10:37 cfssl-certinfo_1.6.5_linux_arm64
-rw-r--r-- 1 root root  6095000  8月 13 10:36 cfssljson_1.6.5_linux_arm64
[root@host51 k8s-work]#
[root@host51 k8s-work]# chmod +x cfssl*
[root@host51 k8s-work]#
[root@host51 k8s-work]# ls -l
总用量 25164
-rwxr-xr-x 1 root root 11534488  8月 13 10:22 cfssl_1.6.5_linux_arm64
-rwxr-xr-x 1 root root  8126616  8月 13 10:37 cfssl-certinfo_1.6.5_linux_arm64
-rwxr-xr-x 1 root root  6095000  8月 13 10:36 cfssljson_1.6.5_linux_arm64
[root@host51 k8s-work]#

mv cfssl_1.6.5_linux_arm64 /usr/local/bin/cfssl
mv cfssl-certinfo_1.6.5_linux_arm64 /usr/local/bin/cfssl-certinfo
mv cfssljson_1.6.5_linux_arm64 /usr/local/bin/cfssljson
cfssl version

2.自签证书颁发机构（CA）

cd /data/k8s-work/

# 配置ca证书请求文件
cat > ca-csr.json <<"EOF"
{
  "CN": "kubernetes",
  "key": {
      "algo": "rsa",
      "size": 2048
  },
  "names": [
    {
      "C": "CN",
      "ST": "Beijing",
      "L": "Beijing",
      "O": "kubemsb",
      "OU": "CN"
    }
  ],
  "ca": {
          "expiry": "87600h"
  }
}
EOF

# 创建ca证书
cfssl gencert -initca ca-csr.json | cfssljson -bare ca

# 配置ca证书策略
cfssl print-defaults config > ca-config.json
cat > ca-config.json <<"EOF"
{
  "signing": {
      "default": {
          "expiry": "87600h"
        },
      "profiles": {
          "kubernetes": {
              "usages": [
                  "signing",
                  "key encipherment",
                  "server auth",
                  "client auth"
              ],
              "expiry": "87600h"
          }
      }
  }
}
EOF

3.使用自签 CA 签发 Etcd HTTPS 证书

# 创建证书申请文件：
cat > etcd-csr.json << "EOF"
{
   "CN": "etcd",
   "hosts": [
       "127.0.0.1",
       "192.168.120.51",
       "192.168.120.52",
       "192.168.120.53",
       "192.168.120.151",
       "192.168.120.152"
   ],
   "key": {
     "algo": "rsa",
     "size": 2048
   },
   "names": [
     {
       "C": "CN",
       "L": "BeiJing",
       "ST": "BeiJing"
     }
   ]
}
EOF

# 生成证书： etcd.csr、etcd-key.pem、etcd.pem
cfssl gencert -ca=ca.pem -ca-key=ca-key.pem -config=ca-config.json -profile=kubernetes etcd-csr.json | cfssljson  -bare etcd

注：上述文件hosts字段中IP为所有etcd节点的集群内部通信IP，一个都不能少！为了方便后期扩容预留了2个临时IP

3.2. 部署 Etcd 集群

https://github.com/etcd-io/etcd/releases（版本：3.5.21）

以下在 master1上操作，为简化操作，待会将master1 生成的所有文件拷贝到 master2 和节点 master3。

tar zxvf etcd-v3.5.21-linux-arm64.tar.gz
mv etcd-v3.5.21-linux-arm64/{etcd,etcdctl} /usr/local/bin

[root@host51 tmp]# etcdctl version
etcdctl version: 3.5.21
API version: 3.5

# k8s-master1  etcd 配置
mkdir -p /etc/etcd/ssl /var/lib/etcd/default.etcd
cd /data/k8s-work/
cp ca*.pem /etc/etcd/ssl
cp etcd*.pem /etc/etcd/ssl

cat > /etc/etcd/etcd.conf << "EOF"
#[Member]
ETCD_NAME="etcd1"
ETCD_DATA_DIR="/var/lib/etcd/default.etcd"
ETCD_LISTEN_PEER_URLS="https://192.168.120.51:2380"
ETCD_LISTEN_CLIENT_URLS="https://192.168.120.51:2379,http://127.0.0.1:2379"

#[Clustering]
ETCD_INITIAL_ADVERTISE_PEER_URLS="https://192.168.120.51:2380"
ETCD_ADVERTISE_CLIENT_URLS="https://192.168.120.51:2379"
ETCD_INITIAL_CLUSTER="etcd1=https://192.168.120.51:2380,etcd2=https://192.168.120.52:2380,etcd3=https://192.168.120.53:2380"
ETCD_INITIAL_CLUSTER_TOKEN="etcd-cluster"
ETCD_INITIAL_CLUSTER_STATE="new"
EOF

说明：

ETCD_NAME：节点名称，集群中唯一
ETCD_DATA_DIR：数据目录
ETCD_LISTEN_PEER_URLS：集群通信监听地址
ETCD_LISTEN_CLIENT_URLS：客户端访问监听地址
ETCD_INITIAL_ADVERTISE_PEER_URLS：集群通告地址
ETCD_ADVERTISE_CLIENT_URLS：客户端通告地址
ETCD_INITIAL_CLUSTER：集群节点地址
ETCD_INITIAL_CLUSTER_TOKEN：集群Token
ETCD_INITIAL_CLUSTER_STATE：加入集群的当前状态，new是新集群，existing表示加入已有集群

1.systemd 管理 etcd

cat > /usr/lib/systemd/system/etcd.service << 'EOF'
[Unit]
Description=Etcd Server
After=network.target
After=network-online.target
Wants=network-online.target

[Service]
Type=notify
Environment="ETCD_UNSUPPORTED_ARCH=arm64"
EnvironmentFile=/etc/etcd/etcd.conf
ExecStart=/usr/local/bin/etcd \
  --cert-file=/etc/etcd/ssl/etcd.pem \
  --key-file=/etc/etcd/ssl/etcd-key.pem \
  --trusted-ca-file=/etc/etcd/ssl/ca.pem \
  --peer-cert-file=/etc/etcd/ssl/etcd.pem \
  --peer-key-file=/etc/etcd/ssl/etcd-key.pem \
  --peer-trusted-ca-file=/etc/etcd/ssl/ca.pem \
  --peer-client-cert-auth \
  --client-cert-auth
  --logger=zap
Restart=on-failure
LimitNOFILE=65536
RestartSec=5

[Install]
WantedBy=multi-user.target
EOF

因为是arm环境，需要加上Environment="ETCD_UNSUPPORTED_ARCH=arm64"

2.将上面 master1 所有生成的文件拷贝到 master2 和 master3，修改etcd.conf文件

ssh root@host52 "mkdir -p /etc/etcd/ssl/ && mkdir -p /var/lib/etcd/default.etcd"
scp -rp /etc/etcd/* root@host52:/etc/etcd/
scp -r /usr/lib/systemd/system/etcd.service  root@host52:/usr/lib/systemd/system/
scp -r /usr/local/bin/{etcd,etcdctl} root@host52:/usr/local/bin/

ssh root@host53 "mkdir -p /etc/etcd/ssl/ && mkdir -p /var/lib/etcd/default.etcd"
scp -rp /etc/etcd/* root@host53:/etc/etcd/
scp -r /usr/lib/systemd/system/etcd.service  root@host53:/usr/lib/systemd/system/
scp -r /usr/local/bin/{etcd,etcdctl} root@host53:/usr/local/bin/

# 修改etcd.conf文件
# k8s-master2  etcd配置
cat > /etc/etcd/etcd.conf << EOF
#[Member]
ETCD_NAME="etcd2"
ETCD_DATA_DIR="/var/lib/etcd/default.etcd"
ETCD_LISTEN_PEER_URLS="https://192.168.120.52:2380"
ETCD_LISTEN_CLIENT_URLS="https://192.168.120.52:2379,http://127.0.0.1:2379"

#[Clustering]
ETCD_INITIAL_ADVERTISE_PEER_URLS="https://192.168.120.52:2380"
ETCD_ADVERTISE_CLIENT_URLS="https://192.168.120.52:2379"
ETCD_INITIAL_CLUSTER="etcd1=https://192.168.120.51:2380,etcd2=https://192.168.120.52:2380,etcd3=https://192.168.120.53:2380"
ETCD_INITIAL_CLUSTER_TOKEN="etcd-cluster"
ETCD_INITIAL_CLUSTER_STATE="new"
EOF

# k8s-master3  etcd配置
cat > /etc/etcd/etcd.conf << EOF
#[Member]
ETCD_NAME="etcd3"
ETCD_DATA_DIR="/var/lib/etcd/default.etcd"
ETCD_LISTEN_PEER_URLS="https://192.168.120.53:2380"
ETCD_LISTEN_CLIENT_URLS="https://192.168.120.53:2379,http://127.0.0.1:2379"

#[Clustering]
ETCD_INITIAL_ADVERTISE_PEER_URLS="https://192.168.120.53:2380"
ETCD_ADVERTISE_CLIENT_URLS="https://192.168.120.53:2379"
ETCD_INITIAL_CLUSTER="etcd1=https://192.168.120.51:2380,etcd2=https://192.168.120.52:2380,etcd3=https://192.168.120.53:2380"
ETCD_INITIAL_CLUSTER_TOKEN="etcd-cluster"
ETCD_INITIAL_CLUSTER_STATE="new"
EOF

# 启动并设置开机启动
systemctl daemon-reload
systemctl restart etcd
systemctl enable etcd
systemctl status etcd

3.查看集群状态

[root@host51 k8s-work]# etcdctl member list
1bbc501e55ccdcbc, started, etcd3, https://192.168.120.53:2380, https://192.168.120.53:2379, false
c2bbef323a613a8d, started, etcd1, https://192.168.120.51:2380, https://192.168.120.51:2379, false
d38d45c2041ce6eb, started, etcd2, https://192.168.120.52:2380, https://192.168.120.52:2379, fals
[root@host51 bin]#
[root@host51 k8s-work]# etcdctl member list -w table
+------------------+---------+-------+-----------------------------+-----------------------------+------------+
|        ID        | STATUS  | NAME  |         PEER ADDRS          |        CLIENT ADDRS         | IS LEARNER |
+------------------+---------+-------+-----------------------------+-----------------------------+------------+
| 1bbc501e55ccdcbc | started | etcd3 | https://192.168.120.53:2380 | https://192.168.120.53:2379 |      false |
| c2bbef323a613a8d | started | etcd1 | https://192.168.120.51:2380 | https://192.168.120.51:2379 |      false |
| d38d45c2041ce6eb | started | etcd2 | https://192.168.120.52:2380 | https://192.168.120.52:2379 |      false |
+------------------+---------+-------+-----------------------------+-----------------------------+------------+

[root@host51 k8s-work]# ETCDCTL_API=3 /usr/local/bin/etcdctl --write-out=table --cacert=/etc/etcd/ssl/ca.pem --cert=/etc/etcd/ssl/etcd.pem --key=/etc/etcd/ssl/etcd-key.pem --endpoints="https://192.168.120.51:2379,https://192.168.120.52:2379,https://192.168.120.53:2379" endpoint health
+-----------------------------+--------+-------------+-------+
|          ENDPOINT           | HEALTH |    TOOK     | ERROR |
+-----------------------------+--------+-------------+-------+
| https://192.168.120.51:2379 |   true |  9.879548ms |       |
| https://192.168.120.52:2379 |   true |  9.925658ms |       |
| https://192.168.120.53:2379 |   true | 10.123852ms |       |
+-----------------------------+--------+-------------+-------+
[root@host51 k8s-work]#

# endpoint status
# endpoint health

4. 安装 Docker 和 cri-dockerd

4.1. 部署 docker

所有机器，自行部署，省略

4.2. 部署 cri-dockerd

所有机器，自行安装

https://github.com/Mirantis/cri-dockerd/releases

wget https://github.com/Mirantis/cri-dockerd/releases/download/v0.3.19/cri-dockerd-0.3.19.arm64.tgz
tar zxvf cri-dockerd-0.3.19.arm64.tgz
mv cri-dockerd/cri-dockerd /usr/bin/
ls -l /usr/bin/cri-dockerd

# 创建配置文件
cat >/usr/lib/systemd/system/cri-docker.service << "EOF"
[Unit]
Description=CRI Interface for Docker Application Container Engine
Documentation=https://docs.mirantis.com
After=network-online.target firewalld.service docker.service
Wants=network-online.target

[Service]
Type=notify
ExecStart=/usr/bin/cri-dockerd --network-plugin=cni --pod-infra-container-image=registry.aliyuncs.com/google_containers/pause:3.9
ExecReload=/bin/kill -s HUP $MAINPID
TimeoutSec=0
RestartSec=2
Restart=always

[Install]
WantedBy=multi-user.target
EOF

# 启动并设置开机启动
systemctl daemon-reload
systemctl start cri-docker
systemctl enable cri-docker

5. 部署负载均衡

kube-apiserver 是无状态的，通过 nginx 进行代理访问，从而保证服务可用性

nginx 做反向代理，后端连接所有的 kube-apiserver 实例，并提供健康检查和负载均衡功能；keepalived 提供 kube-apiserver 对外服务的VIP；

nginx 监听的端口16443需要与 kube-apiserver 的端口6443不同，避免冲突。

5.1. nginx 安装和配置，主从服务都需要安装

直接使用 rpm 包部署，麒麟V10 直接下载 NGINX 的 Centos8 的 rpm 包就行

dnf -y install nginx-1.28.0-1.el8.ngx.aarch64.rpm

nginx 配置

vi /etc/nginx/nginx.conf 新增如下信息：

stream {
    # 添加socket转发的代理
    upstream socket_proxy {
        hash $remote_addr consistent;
        # 转发的目的地址和端口
        server 192.168.120.51:6443 weight=5 max_fails=3 fail_timeout=30s;
        server 192.168.120.52:6443 weight=5 max_fails=3 fail_timeout=30s;
        server 192.168.120.53:6443 weight=5 max_fails=3 fail_timeout=30s;
    }
    # 提供转发的服务，即访问localhost:6443，会跳转至代理socket_proxy指定的转发地址
    server {
       listen 6443;
       proxy_connect_timeout 1s;
       proxy_timeout 3s;
       proxy_pass socket_proxy;
    }
}

配置开机自启服务

# rm -f /etc/nginx/conf.d/default.conf
systemctl start nginx && systemctl enable nginx

5.2. keepalived 安装和配置

1.安装keepalived

yum install -y keepalived

2.修改配置文件

cp /etc/keepalived/keepalived.conf /etc/keepalived/keepalived.conf.bak
vi /etc/keepalived/keepalived.conf

# kd01
cat > /etc/keepalived/keepalived.conf << "EOF"
global_defs {
    router_id kd01
}

vrrp_script check_run {
    script "/etc/keepalived/check_web.sh"
    interval 5
    weight 2
}

vrrp_instance VI_1 {
    state MASTER
    interface enp0s11
    virtual_router_id 51
    priority 100
    advert_int 2
    nopreempt

    authentication {
        auth_type PASS
        auth_pass 2222
    }

    unicast_src_ip 192.168.120.54
    unicast_peer {
        192.168.120.55
        192.168.120.56
    }

    virtual_ipaddress {
        192.168.120.50
    }

    track_script {
        check_run
    }
}
EOF

# kd02
cat > /etc/keepalived/keepalived.conf << "EOF"
global_defs {
    router_id kd02
}

vrrp_script check_run {
    script "/etc/keepalived/check_web.sh"
    interval 5
    weight 2
}

vrrp_instance VI_1 {
    state BACKUP
    interface enp0s11
    virtual_router_id 51
    priority 90
    advert_int 2
    nopreempt

    authentication {
        auth_type PASS
        auth_pass 2222
    }

    unicast_src_ip 192.168.120.55
    unicast_peer {
        192.168.120.54
        192.168.120.56
    }

    virtual_ipaddress {
        192.168.120.50
    }

    track_script {
        check_run
    }
}
EOF

# kd03
cat > /etc/keepalived/keepalived.conf << "EOF"
global_defs {
    router_id kd03
}

vrrp_script check_run {
    script "/etc/keepalived/check_web.sh"
    interval 5
    weight 2
}

vrrp_instance VI_1 {
    state BACKUP
    interface enp0s11
    virtual_router_id 51
    priority 80
    advert_int 2
    nopreempt

    authentication {
        auth_type PASS
        auth_pass 2222
    }

    unicast_src_ip 192.168.120.56
    unicast_peer {
        192.168.120.54
        192.168.120.55
    }

    virtual_ipaddress {
        192.168.120.50
    }

    track_script {
        check_run
    }
}
EOF

3.编写 nginx 监控脚本

如果nginx服务停止，keepalived服务也停止，并切换到备主机。脚本如下：/etc/keepalived/check_web.sh

cat > /etc/keepalived/check_web.sh << "EOF"
#!/bin/bash
num=$(ps -C nginx --no-header | wc -l)
if [ $num -eq 0 ]; then
    systemctl restart nginx
    sleep 10
    num=$(ps -C nginx --no-header | wc -l)
    if [ $num -eq 0 ]; then
        systemctl stop keepalived
    fi
fi
EOF

chmod +x /etc/keepalived/check_web.sh

4.配置开机自启 keepalived 服务

systemctl start keepalived
systemctl enable keepalived
systemctl status keepalived

6. kubernetes 集群部署

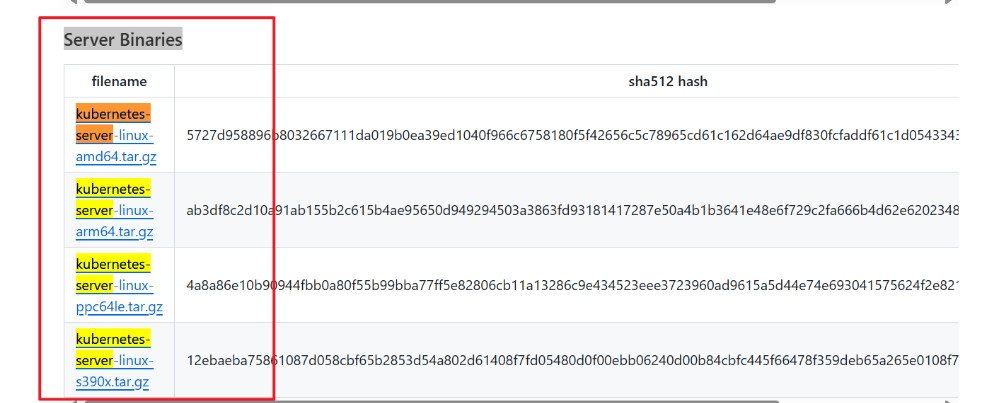

https://github.com/kubernetes/kubernetes/blob/master/CHANGELOG/CHANGELOG-1.28.md#downloads-for-v1281

注意选择 arm 版本

6.1. 下载并解压安装包

wget https://dl.k8s.io/v1.28.15/kubernetes-server-linux-arm64.tar.gz
tar zxvf kubernetes-server-linux-arm64.tar.gz
cd kubernetes/server/bin/
cp kube-apiserver kube-controller-manager kube-scheduler kubectl /usr/local/bin/

mkdir -p /etc/kubernetes/ssl
mkdir -p /var/log/kubernetes

# Kubernetes软件分发
scp kube-apiserver kube-controller-manager kube-scheduler kubectl host52:/usr/local/bin/
scp kube-apiserver kube-controller-manager kube-scheduler kubectl host53:/usr/local/bin/

6.2. 部署 kube-apiserver

1.创建 apiserver 证书请求文件

cd /data/k8s-work/

cat > kube-apiserver-csr.json << "EOF"
{
"CN": "kubernetes",
  "hosts": [
    "127.0.0.1",
    "192.168.120.50",
    "192.168.120.51",
    "192.168.120.52",
    "192.168.120.53",
    "192.168.120.151",
    "192.168.120.152",
    "10.96.0.1",
    "kubernetes",
    "kubernetes.default",
    "kubernetes.default.svc",
    "kubernetes.default.svc.cluster",
    "kubernetes.default.svc.cluster.local"
  ],
  "key": {
    "algo": "rsa",
    "size": 2048
  },
  "names": [
    {
      "C": "CN",
      "ST": "Beijing",
      "L": "Beijing",
      "O": "kubemsb",
      "OU": "CN"
    }
  ]
}
EOF

# 生成apiserver证书及token文件
# 生成kube-apiserver.csr、kube-apiserver-key.pem、kube-apiserver.pem

cfssl gencert -ca=ca.pem -ca-key=ca-key.pem -config=ca-config.json -profile=kubernetes kube-apiserver-csr.json | cfssljson -bare kube-apiserver

#生成token.csv
cat > token.csv << EOF
$(head -c 16 /dev/urandom | od -An -t x | tr -d ' '),kubelet-bootstrap,10001,"system:kubelet-bootstrap"
EOF

注：上述文件 hosts 字段中 IP 为所有 Master/LB/VIP IP，一个都不能少！为了方便后期扩容可以多写几个预留的 IP。

2.创建配置文件

cat > /etc/kubernetes/kube-apiserver.conf << "EOF"
KUBE_APISERVER_OPTS=" \
  --bind-address=192.168.120.51 \
  --advertise-address=192.168.120.51 \
  --secure-port=6443 \
  --allow-privileged=true \
  --authorization-mode=Node,RBAC \
  --anonymous-auth=false \
  --runtime-config=api/all=true \
  --enable-admission-plugins=NamespaceLifecycle,NodeRestriction,LimitRanger,ServiceAccount,DefaultStorageClass,ResourceQuota \
  --enable-bootstrap-token-auth \
  --token-auth-file=/etc/kubernetes/token.csv \
  --service-cluster-ip-range=10.96.0.0/16 \
  --service-node-port-range=30000-32767 \
  --tls-cert-file=/etc/kubernetes/ssl/kube-apiserver.pem \
  --tls-private-key-file=/etc/kubernetes/ssl/kube-apiserver-key.pem \
  --client-ca-file=/etc/kubernetes/ssl/ca.pem \
  --kubelet-client-certificate=/etc/kubernetes/ssl/kube-apiserver.pem \
  --kubelet-client-key=/etc/kubernetes/ssl/kube-apiserver-key.pem \
  --service-account-key-file=/etc/kubernetes/ssl/ca-key.pem \
  --service-account-signing-key-file=/etc/kubernetes/ssl/ca-key.pem \
  --service-account-issuer=api \
  --etcd-servers=https://192.168.120.51:2379,https://192.168.120.52:2379,https://192.168.120.53:2379 \
  --etcd-cafile=/etc/etcd/ssl/ca.pem \
  --etcd-certfile=/etc/etcd/ssl/etcd.pem \
  --etcd-keyfile=/etc/etcd/ssl/etcd-key.pem \
  --enable-aggregator-routing=true \
  --requestheader-allowed-names=kubernetes \
  --requestheader-extra-headers-prefix=X-Remote-Extra- \
  --requestheader-group-headers=X-Remote-Group \
  --requestheader-username-headers=X-Remote-User \
  --apiserver-count=3 \
  --event-ttl=1h \
  --audit-log-maxage=30 \
  --audit-log-maxbackup=3 \
  --audit-log-maxsize=100 \
  --audit-log-path=/var/log/kube-apiserver-audit.log \
  \
  --v=4"
EOF

3.证书拷贝

cd /data/k8s-work/
cp ca*.pem /etc/kubernetes/ssl/
cp kube-apiserver*.pem /etc/kubernetes/ssl/
cp token.csv /etc/kubernetes/

4.创建 apiserver 服务管理配置文件

cat > /usr/lib/systemd/system/kube-apiserver.service << "EOF"
[Unit]
Description=Kubernetes API Server
Documentation=https://github.com/kubernetes/kubernetes

[Service]
EnvironmentFile=-/etc/kubernetes/kube-apiserver.conf
ExecStart=/usr/local/bin/kube-apiserver $KUBE_APISERVER_OPTS
Restart=on-failure
RestartSec=5
Type=notify
LimitNOFILE=65536

[Install]
WantedBy=multi-user.target
EOF

5.同步文件到集群 master 节点

scp /etc/kubernetes/ssl/ca*.pem host52:/etc/kubernetes/ssl
scp /etc/kubernetes/ssl/ca*.pem host53:/etc/kubernetes/ssl

scp /etc/kubernetes/ssl/kube-apiserver*.pem host52:/etc/kubernetes/ssl
scp /etc/kubernetes/ssl/kube-apiserver*.pem host53:/etc/kubernetes/ssl

scp /etc/kubernetes/token.csv host52:/etc/kubernetes
scp /etc/kubernetes/token.csv host53:/etc/kubernetes

#需要修改为对应主机的ip地址
scp /etc/kubernetes/kube-apiserver.conf host52:/etc/kubernetes/kube-apiserver.conf
scp /etc/kubernetes/kube-apiserver.conf host53:/etc/kubernetes/kube-apiserver.conf

scp /usr/lib/systemd/system/kube-apiserver.service host52:/usr/lib/systemd/system/kube-apiserver.service
scp /usr/lib/systemd/system/kube-apiserver.service host53:/usr/lib/systemd/system/kube-apiserver.service

6.启动服务

# 启动：
systemctl daemon-reload
systemctl start kube-apiserver
systemctl enable kube-apiserver

# 验证：
curl --insecure https://192.168.120.51:6443/
curl --insecure https://192.168.120.52:6443/
curl --insecure https://192.168.120.53:6443/
curl --insecure https://192.168.120.50:6443/
{
  "kind": "Status",
  "apiVersion": "v1",
  "metadata": {},
  "status": "Failure",
  "message": "Unauthorized",
  "reason": "Unauthorized",
  "code": 401
}

6.3. 部署 kube-controller-manager

1.创建 kube-controller-manager 证书请求文件

cd /data/k8s-work
cat > kube-controller-manager-csr.json << "EOF"
{
    "CN": "system:kube-controller-manager",
    "key": {
        "algo": "rsa",
        "size": 2048
    },
    "hosts": [
      "127.0.0.1",
      "192.168.120.51",
      "192.168.120.52",
      "192.168.120.53"
    ],
    "names": [
      {
        "C": "CN",
        "ST": "Beijing",
        "L": "Beijing",
        "O": "system:kube-controller-manager",
        "OU": "system"
      }
    ]
}
EOF

2.创建 kube-controller-manager 证书文件

kube-controller-manager.csr
kube-controller-manager-csr.json
kube-controller-manager-key.pem
kube-controller-manager.pem

cfssl gencert -ca=ca.pem -ca-key=ca-key.pem -config=ca-config.json -profile=kubernetes kube-controller-manager-csr.json | cfssljson -bare kube-controller-manager

3.创建 kube-controller-manager 的 kube-controller-manager.kubeconfig

kubectl config set-cluster kubernetes \
--certificate-authority=./ca.pem --embed-certs=true \
--server=https://192.168.120.50:6443 \
--kubeconfig=kube-controller-manager.kubeconfig

kubectl config set-credentials system:kube-controller-manager \
--client-certificate=./kube-controller-manager.pem \
--client-key=./kube-controller-manager-key.pem \
--embed-certs=true \
--kubeconfig=kube-controller-manager.kubeconfig

kubectl config set-context system:kube-controller-manager \
--cluster=kubernetes --user=system:kube-controller-manager \
--kubeconfig=kube-controller-manager.kubeconfig

kubectl config use-context system:kube-controller-manager \
--kubeconfig=kube-controller-manager.kubeconfig

4.创建 kube-controller-manager 配置文件

cat > kube-controller-manager.conf << "EOF"
KUBE_CONTROLLER_MANAGER_OPTS=" \
  --secure-port=10257 \
  --bind-address=127.0.0.1 \
  --kubeconfig=/etc/kubernetes/kube-controller-manager.kubeconfig \
  --service-cluster-ip-range=10.96.0.0/16 \
  --cluster-name=kubernetes \
  --cluster-signing-cert-file=/etc/kubernetes/ssl/ca.pem \
  --cluster-signing-key-file=/etc/kubernetes/ssl/ca-key.pem \
  --allocate-node-cidrs=true \
  --cluster-cidr=10.244.0.0/16 \
  --root-ca-file=/etc/kubernetes/ssl/ca.pem \
  --service-account-private-key-file=/etc/kubernetes/ssl/ca-key.pem \
  --leader-elect=true \
  --feature-gates=RotateKubeletServerCertificate=true \
  --controllers=*,bootstrapsigner,tokencleaner \
  --tls-cert-file=/etc/kubernetes/ssl/kube-controller-manager.pem \
  --tls-private-key-file=/etc/kubernetes/ssl/kube-controller-manager-key.pem \
  --use-service-account-credentials=true \
  --cluster-signing-duration=87600h0m0s \
  --v=2"
EOF

5.创建服务启动文件

cat > /usr/lib/systemd/system/kube-controller-manager.service << "EOF"
[Unit]
Description=Kubernetes Controller Manager
Documentation=https://github.com/kubernetes/kubernetes

[Service]
EnvironmentFile=/etc/kubernetes/kube-controller-manager.conf
ExecStart=/usr/local/bin/kube-controller-manager $KUBE_CONTROLLER_MANAGER_OPTS
Restart=on-failure
RestartSec=5

[Install]
WantedBy=multi-user.target
EOF

6.同步文件到集群 master 节点

cp kube-controller-manager*.pem /etc/kubernetes/ssl/
cp kube-controller-manager.kubeconfig /etc/kubernetes/
cp kube-controller-manager.conf /etc/kubernetes/

scp  kube-controller-manager*.pem host52:/etc/kubernetes/ssl/
scp  kube-controller-manager*.pem host53:/etc/kubernetes/ssl/

scp  kube-controller-manager.kubeconfig kube-controller-manager.conf host52:/etc/kubernetes/
scp  kube-controller-manager.kubeconfig kube-controller-manager.conf host53:/etc/kubernetes/

scp  /usr/lib/systemd/system/kube-controller-manager.service  host52:/usr/lib/systemd/system/
scp  /usr/lib/systemd/system/kube-controller-manager.service  host53:/usr/lib/systemd/system/

7.启动服务

systemctl daemon-reload
systemctl start kube-controller-manager
systemctl enable --now kube-controller-manager
systemctl status kube-controller-manager

6.4. 部署 kube-scheduler

1.创建 kube-scheduler 证书请求文件

cd /data/k8s-work
cat > kube-scheduler-csr.json << "EOF"
{
    "CN": "system:kube-scheduler",
    "hosts": [],
    "key": {
        "algo": "rsa",
        "size": 2048
    },
    "names": [
      {
        "C": "CN",
        "ST": "Beijing",
        "L": "Beijing",
        "O": "system:kube-scheduler",
        "OU": "system"
      }
    ]
}
EOF

2.生成 kube-scheduler 证书

kube-scheduler.csr
kube-scheduler-csr.json
kube-scheduler-key.pem
kube-scheduler.pem

cfssl gencert -ca=ca.pem -ca-key=ca-key.pem -config=ca-config.json -profile=kubernetes kube-scheduler-csr.json | cfssljson -bare kube-scheduler

3.创建 kube-scheduler 的 kubeconfig

kubectl config set-cluster kubernetes \
--certificate-authority=./ca.pem \
--embed-certs=true \
--server=https://192.168.120.50:6443 \
--kubeconfig=kube-scheduler.kubeconfig

kubectl config set-credentials system:kube-scheduler \
--client-certificate=./kube-scheduler.pem \
--client-key=./kube-scheduler-key.pem \
--embed-certs=true \
--kubeconfig=kube-scheduler.kubeconfig

kubectl config set-context system:kube-scheduler \
--cluster=kubernetes \
--user=system:kube-scheduler \
--kubeconfig=kube-scheduler.kubeconfig

kubectl config use-context system:kube-scheduler \
--kubeconfig=kube-scheduler.kubeconfig

4.创建服务配置文件

cat > kube-scheduler.conf << EOF
KUBE_SCHEDULER_OPTS="--leader-elect=true \
--kubeconfig=/etc/kubernetes/kube-scheduler.kubeconfig \
--bind-address=127.0.0.1 \
--v=2"
EOF

5.创建服务启动配置文件

cat > /usr/lib/systemd/system/kube-scheduler.service << "EOF"
[Unit]
Description=Kubernetes Scheduler
Documentation=https://github.com/kubernetes/kubernetes

[Service]
EnvironmentFile=-/etc/kubernetes/kube-scheduler.conf
ExecStart=/usr/local/bin/kube-scheduler $KUBE_SCHEDULER_OPTS
Restart=on-failure
RestartSec=5

[Install]
WantedBy=multi-user.target
EOF

6.同步文件至集群 master 节点

cp kube-scheduler*.pem /etc/kubernetes/ssl/
cp kube-scheduler.kubeconfig /etc/kubernetes/
cp kube-scheduler.conf /etc/kubernetes/

scp  kube-scheduler*.pem host52:/etc/kubernetes/ssl/
scp  kube-scheduler*.pem host53:/etc/kubernetes/ssl/

scp  kube-scheduler.kubeconfig kube-scheduler.conf host52:/etc/kubernetes/
scp  kube-scheduler.kubeconfig kube-scheduler.conf host53:/etc/kubernetes/

scp  /usr/lib/systemd/system/kube-scheduler.service host52:/usr/lib/systemd/system/
scp  /usr/lib/systemd/system/kube-scheduler.service host53:/usr/lib/systemd/system/

7.启动服务

systemctl daemon-reload
systemctl start kube-scheduler
systemctl enable --now kube-scheduler
systemctl status kube-scheduler

6.5. 部署kubectl

1.创建 kubectl 证书请求文件

cd /data/k8s-work

cat > admin-csr.json << "EOF"
{
  "CN": "admin",
  "hosts": [],
  "key": {
    "algo": "rsa",
    "size": 2048
  },
  "names": [
    {
      "C": "CN",
      "ST": "Beijing",
      "L": "Beijing",
      "O": "system:masters",
      "OU": "system"
    }
  ]
}
EOF

# 生成证书文件
cfssl gencert -ca=ca.pem -ca-key=ca-key.pem -config=ca-config.json -profile=kubernetes admin-csr.json | cfssljson -bare admin

# 复制文件到指定目录
cp admin*.pem /etc/kubernetes/ssl/

2.生成 kube.config 配置文件

kube.config 为 kubectl 的配置文件，包含访问 apiserver 的所有信息，如 apiserver 地址、CA 证书和自身使用的证书

cd /etc/kubernetes/ssl/

 # vip
kubectl config set-cluster kubernetes \
  --certificate-authority=./ca.pem \
  --embed-certs=true \
  --server=https://192.168.120.50:6443 \
  --kubeconfig=kube.config

kubectl config set-credentials cluster-admin \
  --client-certificate=./admin.pem \
  --client-key=./admin-key.pem \
  --embed-certs=true \
  --kubeconfig=kube.config

kubectl config set-context kubernetes \
  --cluster=kubernetes \
  --user=cluster-admin \
  --kubeconfig=kube.config

kubectl config use-context kubernetes --kubeconfig=kube.config

3.准备 kubectl 配置文件并进行角色绑定

mkdir ~/.kube
cp kube.config ~/.kube/config

kubectl create clusterrolebinding kube-apiserver:kubelet-apis \
--clusterrole=system:kubelet-api-admin --user kubernetes --kubeconfig=/root/.kube/config

kubectl create clusterrolebinding kubelet-bootstrap \
--clusterrole=system:node-bootstrapper \
--user=kubelet-bootstrap

kubectl create clusterrolebinding node-client-auto-approve-csr --clusterrole=system:certificates.k8s.io:certificatesigningrequests:nodeclient \
--user=kubelet-bootstrap

4.查看集群状态

#查看集群信息
kubectl cluster-info

#查看集群组件状态
kubectl get componentstatuses

#查看命名空间中资源对象
kubectl get all --all-namespaces

5.同步 kubectl 配置文件到集群其它 master 节点

#k8s-master2节点上，创建文件夹
mkdir /root/.kube

#k8s-master3节点上，创建文件夹
mkdir /root/.kube

#把配置文件同步过去
scp /root/.kube/config host52:/root/.kube/config
scp /root/.kube/config host53:/root/.kube/config

7. 工作节点（worker node）部署

7.1. 部署kubelet

在一台 master上进行操作

1.创建配置文件

cd /data/k8s-work

cat > kubelet.conf << "EOF"
KUBELET_OPTS=" \
--kubeconfig=/etc/kubernetes/kubelet.kubeconfig \
--bootstrap-kubeconfig=/etc/kubernetes/kubelet-bootstrap.kubeconfig \
--config=/etc/kubernetes/kubelet.yml \
--cert-dir=/etc/kubernetes/ssl \
--pod-infra-container-image=registry.aliyuncs.com/google_containers/pause:3.9 \
--container-runtime-endpoint=unix:///var/run/cri-dockerd.sock \
--v=2"
EOF

2.创建 kubelet 配置文件

在node节点操作：mkdir -p /etc/kubernetes/ssl

cat > kubelet.yml << EOF
kind: KubeletConfiguration
apiVersion: kubelet.config.k8s.io/v1beta1
address: 0.0.0.0
port: 10250
readOnlyPort: 10255
cgroupDriver: systemd
authentication:
  anonymous:
    enabled: false
  webhook:
    cacheTTL: 2m0s
    enabled: true
  x509:
    clientCAFile: /etc/kubernetes/ssl/ca.pem

authorization:
  mode: Webhook
  webhook:
    cacheAuthorizedTTL: 5m0s
    cacheUnauthorizedTTL: 30s
clusterDNS:
- 10.96.0.2
clusterDomain: cluster.local
evictionHard:
  imagefs.available: 15%
  memory.available: 100Mi
  nodefs.available: 10%
  nodefs.inodesFree: 5%

maxOpenFiles: 1000000
maxPods: 110

serializeImagePulls: false
hairpinMode: promiscuous-bridge
failSwapOn: true
EOF

3.创建 kubelet-bootstrap.kubeconfig

cd /data/k8s-work
# 与token.csv里保持一致
#BOOTSTRAP_TOKEN=$(awk -F "," '{print $1}' /etc/kubernetes/token.csv)
BOOTSTRAP_TOKEN=7c569c3a779eaf221d3bf3c2611daac1

kubectl config set-cluster kubernetes \
--certificate-authority=./ca.pem \
--embed-certs=true \
--server=https://192.168.120.50:6443 \
--kubeconfig=kubelet-bootstrap.kubeconfig

kubectl config set-credentials kubelet-bootstrap \
--token=${BOOTSTRAP_TOKEN} \
--kubeconfig=kubelet-bootstrap.kubeconfig

kubectl config set-context default \
--cluster=kubernetes \
--user=kubelet-bootstrap \
--kubeconfig=kubelet-bootstrap.kubeconfig

kubectl config use-context default --kubeconfig=kubelet-bootstrap.kubeconfig

kubectl create clusterrolebinding cluster-system-anonymous \
--clusterrole=cluster-admin --user=kubelet-bootstrap

kubectl create clusterrolebinding kubelet-bootstrap \
--clusterrole=system:node-bootstrapper \
--user=kubelet-bootstrap --kubeconfig=kubelet-bootstrap.kubeconfig

4.创建 kubelet 服务启动管理文件

cat > kubelet.service << "EOF"
[Unit]
Description=Kubernetes Kubelet
Documentation=https://github.com/kubernetes/kubernetes
After=docker.service
Requires=docker.service

[Service]

EnvironmentFile=/etc/kubernetes/kubelet.conf
ExecStart=/usr/local/bin/kubelet $KUBELET_OPTS
Restart=on-failure
LimitNOFILE=65536
RestartSec=5

[Install]
WantedBy=multi-user.target
EOF

5.同步文件到集群节点

k8s-master1上生成的文件同步到 node 节点

scp kubelet-bootstrap.kubeconfig kubelet.conf kubelet.yml root@host52:/etc/kubernetes/
scp kubelet-bootstrap.kubeconfig kubelet.conf kubelet.yml root@host53:/etc/kubernetes/
scp kubelet-bootstrap.kubeconfig kubelet.conf kubelet.yml root@host54:/etc/kubernetes/
scp kubelet-bootstrap.kubeconfig kubelet.conf kubelet.yml root@host55:/etc/kubernetes/
scp kubelet-bootstrap.kubeconfig kubelet.conf kubelet.yml root@host56:/etc/kubernetes/

scp kubelet.service root@host52:/usr/lib/systemd/system/kubelet.service
scp kubelet.service root@host53:/usr/lib/systemd/system/kubelet.service
scp kubelet.service root@host54:/usr/lib/systemd/system/kubelet.service
scp kubelet.service root@host55:/usr/lib/systemd/system/kubelet.service
scp kubelet.service root@host56:/usr/lib/systemd/system/kubelet.service

scp ca.pem  root@host54:/etc/kubernetes/ssl
scp ca.pem  root@host55:/etc/kubernetes/ssl
scp ca.pem  root@host56:/etc/kubernetes/ssl

# 把二进制文件分发到node节点
cd /tmp/kubernetes/server/bin/
scp kubelet kube-scheduler kube-proxy root@host52:/usr/local/bin/
scp kubelet kube-scheduler kube-proxy root@host53:/usr/local/bin/
scp kubelet kube-scheduler kube-proxy root@host54:/usr/local/bin/
scp kubelet kube-scheduler kube-proxy root@host55:/usr/local/bin/
scp kubelet kube-scheduler kube-proxy root@host56:/usr/local/bin/

6.启动服务

systemctl daemon-reload
systemctl enable --now kubelet
systemctl status kubelet

# master 查看

[root@host51 k8s-work]# kubectl get nodes
NAME     STATUS     ROLES    AGE     VERSION
host51   NotReady   <none>   2m59s   v1.28.15
host52   NotReady   <none>   9s      v1.28.15
host53   NotReady   <none>   5s      v1.28.15
host54   NotReady   <none>   13m     v1.28.15
host55   NotReady   <none>   12m     v1.28.15
host56   NotReady   <none>   12m     v1.28.15

启动 kubelet 后，在/etc/kubernetes目录下会自动生成证书配置文件 kubelet.kubeconfig。

在 ssl 中会看到自动签发的证书 kubelet-client-2025-08-14-08-47-30.pem、kubelet.crt、kubelet.key
后续如果节点异常，重新签发证书，需要把ssl里面的证书先删除，否则会看到节点加入集群失败

[root@host54 kubernetes]# tree
.
├── kubelet-bootstrap.kubeconfig
├── kubelet.json
├── kubelet.kubeconfig
└── ssl
├── ca.pem
├── kubelet-client-2025-08-14-08-47-30.pem
├── kubelet-client-current.pem -> /etc/kubernetes/ssl/kubelet-client-2025-08-14-08-47-30.pem
├── kubelet.crt
└── kubelet.key

1 directory, 8 files
[root@host54 kubernetes]#

7.2. 部署kube-proxy

在master先操作

1.创建服务配置文件

cd /data/k8s-work

cat > kube-proxy.yaml << "EOF"
apiVersion: kubeproxy.config.k8s.io/v1alpha1
bindAddress:  0.0.0.0
clientConnection:
  kubeconfig: /etc/kubernetes/kube-proxy.kubeconfig
clusterCIDR: 10.244.0.0/16
healthzBindAddress: 0.0.0.0:10256
kind: KubeProxyConfiguration
metricsBindAddress: 0.0.0.0:10249
mode: "ipvs"
EOF

2.创建服务启动管理文件

cat > kube-proxy.conf << "EOF"
KUBE_PROXY_OPTS=" \
--config=/etc/kubernetes/kube-proxy.yaml \
--v=2"
EOF

cat > kube-proxy.service << "EOF"
[Unit]
Description=Kubernetes Kube-Proxy Server
Documentation=https://github.com/kubernetes/kubernetes
After=network.target

[Service]
EnvironmentFile=/etc/kubernetes/kube-proxy.conf
ExecStart=/usr/local/bin/kube-proxy $KUBE_PROXY_OPTS
Restart=on-failure
RestartSec=5
LimitNOFILE=65536

[Install]
WantedBy=multi-user.target
EOF

3.创建 kube-proxy 证书请求文件

cd /data/k8s-work

cat > kube-proxy-csr.json << "EOF"
{
  "CN": "system:kube-proxy",
  "key": {
    "algo": "rsa",
    "size": 2048
  },
  "names": [
    {
      "C": "CN",
      "ST": "Beijing",
      "L": "Beijing",
      "O": "kubemsb",
      "OU": "CN"
    }
  ]
}
EOF

# 生成证书 kube-proxy.pem kube-proxy-key.pem kube-proxy.csr
cfssl gencert -ca=ca.pem -ca-key=ca-key.pem -config=ca-config.json -profile=kubernetes kube-proxy-csr.json | cfssljson -bare kube-proxy

4.创建 kubeconfig 文件

生成：kube-proxy.kubeconfig

kubectl config set-cluster kubernetes \
--certificate-authority=./ca.pem \
--embed-certs=true \
--server=https://192.168.120.50:6443 \
--kubeconfig=kube-proxy.kubeconfig

kubectl config set-credentials kube-proxy \
--client-certificate=./kube-proxy.pem \
--client-key=./kube-proxy-key.pem \
--embed-certs=true \
--kubeconfig=kube-proxy.kubeconfig

kubectl config set-context default \
--cluster=kubernetes --user=kube-proxy \
--kubeconfig=kube-proxy.kubeconfig

kubectl config use-context default \
--kubeconfig=kube-proxy.kubeconfig

5.同步文件到集群工作节点主机

在master上进行操作

cp kube-proxy.yaml kube-proxy.conf  kube-proxy.kubeconfig /etc/kubernetes/
cp kube-proxy*pem /etc/kubernetes/ssl
cp kube-proxy.service /usr/lib/systemd/system/kube-proxy.service

scp kube-proxy.yaml kube-proxy.conf  kube-proxy.kubeconfig root@host52:/etc/kubernetes/
scp kube-proxy.yaml kube-proxy.conf  kube-proxy.kubeconfig root@host53:/etc/kubernetes/
scp kube-proxy.yaml kube-proxy.conf  kube-proxy.kubeconfig root@host54:/etc/kubernetes/
scp kube-proxy.yaml kube-proxy.conf  kube-proxy.kubeconfig root@host55:/etc/kubernetes/
scp kube-proxy.yaml kube-proxy.conf  kube-proxy.kubeconfig root@host56:/etc/kubernetes/

scp kube-proxy*pem root@host52:/etc/kubernetes/ssl
scp kube-proxy*pem root@host53:/etc/kubernetes/ssl
scp kube-proxy*pem root@host54:/etc/kubernetes/ssl
scp kube-proxy*pem root@host55:/etc/kubernetes/ssl
scp kube-proxy*pem root@host56:/etc/kubernetes/ssl

scp kube-proxy.service root@host52:/usr/lib/systemd/system/kube-proxy.service
scp kube-proxy.service root@host53:/usr/lib/systemd/system/kube-proxy.service
scp kube-proxy.service root@host54:/usr/lib/systemd/system/kube-proxy.service
scp kube-proxy.service root@host55:/usr/lib/systemd/system/kube-proxy.service
scp kube-proxy.service root@host56:/usr/lib/systemd/system/kube-proxy.service

6.服务启动

在node节点上创建

systemctl daemon-reload
systemctl enable --now kube-proxy
systemctl status kube-proxy

8. 网络组件部署 Calico（部署 CNI 网络）

1.下载文件

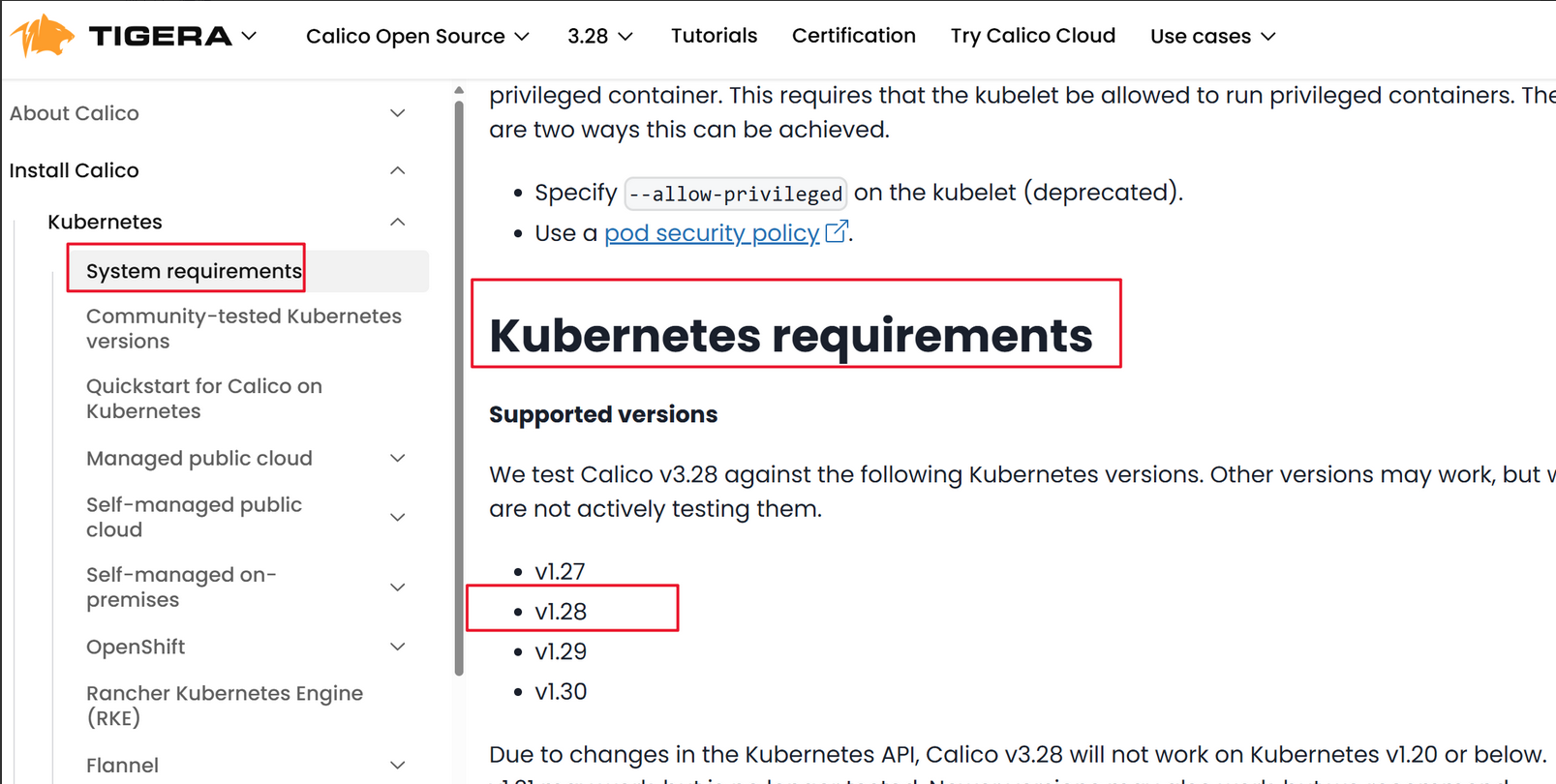

在 calico 的官网进行下载对应的 yaml 文件，在 master 节点上创建

# kubectl create -f https://raw.githubusercontent.com/projectcalico/calico/v3.28.5/manifests/tigera-operator.yaml
# kubectl create -f https://raw.githubusercontent.com/projectcalico/calico/v3.28.5/manifests/custom-resources.yaml

#先使用wget下载后，检查文件正常后在进行部署
wget https://raw.githubusercontent.com/projectcalico/calico/v3.28.5/manifests/tigera-operator.yaml
wget https://raw.githubusercontent.com/projectcalico/calico/v3.28.5/manifests/custom-resources.yaml

2.修改文件

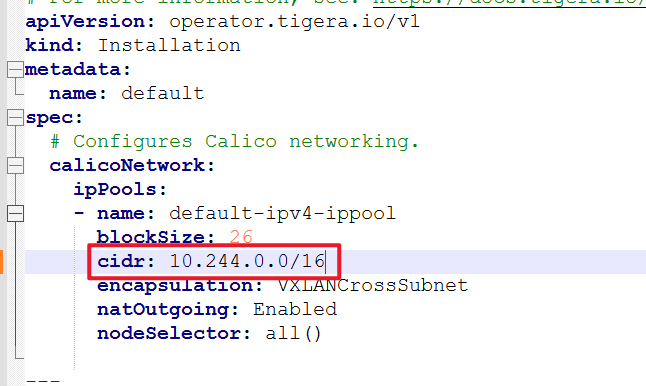

custom-resources.yaml 文件默认的 pod 网络为 192.168.0.0/16，我们定义的 pod 网络为 10.244.0.0/16,需要修改后再执行。

cidr: 192.168.0.0/16 修改成 cidr: 10.244.0.0/16

8.1. 部署插件

kubectl create -f tigera-operator.yaml
#  tigera-operator中pod都running后，执行 kubectl create -f custom-resources.yaml
kubectl create -f custom-resources.yaml

kubectl get pods -n calico-system

# 部署好网络插件，Node准备就绪。
[root@host51 ~]# kubectl get nodes
NAME     STATUS     ROLES    AGE   VERSION
host51   Ready      <none>   30m   v1.28.15
host52   Ready      <none>   27m   v1.28.15
host53   NotReady   <none>   27m   v1.28.15
host54   NotReady   <none>   40m   v1.28.15
host55   Ready      <none>   40m   v1.28.15
host56   Ready      <none>   40m   v1.28.15
[root@host51 ~]#

8.2. 授权 apiserver 访问 kubelet

cat > apiserver-to-kubelet-rbac.yaml << "EOF"
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  annotations:
    rbac.authorization.kubernetes.io/autoupdate: "true"
  labels:
    kubernetes.io/bootstrapping: rbac-defaults
  name: system:kube-apiserver-to-kubelet
rules:
  - apiGroups:
      - ""
    resources:
      - nodes/proxy
      - nodes/stats
      - nodes/log
      - nodes/spec
      - nodes/metrics
      - pods/log
    verbs:
      - "*"
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: system:kube-apiserver
  namespace: ""
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: system:kube-apiserver-to-kubelet
subjects:
  - apiGroup: rbac.authorization.k8s.io
    kind: User
    name: kubernetes
EOF


# 部署yaml
kubectl apply -f apiserver-to-kubelet-rbac.yaml

8.3. 部署 CoreDNS

CoreDNS用于集群内部 Service 名称解析。

cat >  coredns.yaml << "EOF"
apiVersion: v1
kind: ServiceAccount
metadata:
  name: coredns
  namespace: kube-system
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  labels:
    kubernetes.io/bootstrapping: rbac-defaults
  name: system:coredns
rules:
  - apiGroups:
    - ""
    resources:
    - endpoints
    - services
    - pods
    - namespaces
    verbs:
    - list
    - watch
  - apiGroups:
    - discovery.k8s.io
    resources:
    - endpointslices
    verbs:
    - list
    - watch
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  annotations:
    rbac.authorization.kubernetes.io/autoupdate: "true"
  labels:
    kubernetes.io/bootstrapping: rbac-defaults
  name: system:coredns
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: system:coredns
subjects:
- kind: ServiceAccount
  name: coredns
  namespace: kube-system
---
apiVersion: v1
kind: ConfigMap
metadata:
  name: coredns
  namespace: kube-system
data:
  Corefile: |
    .:53 {
        errors
        health {
          lameduck 5s
        }
        ready
        kubernetes cluster.local  in-addr.arpa ip6.arpa {
          fallthrough in-addr.arpa ip6.arpa
        }
        prometheus :9153
        forward . /etc/resolv.conf {
          max_concurrent 1000
        }
        cache 30
        loop
        reload
        loadbalance
    }
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: coredns
  namespace: kube-system
  labels:
    k8s-app: kube-dns
    kubernetes.io/name: "CoreDNS"
spec:
  # replicas: not specified here:
  # 1. Default is 1.
  # 2. Will be tuned in real time if DNS horizontal auto-scaling is turned on.
  strategy:
    type: RollingUpdate
    rollingUpdate:
      maxUnavailable: 1
  selector:
    matchLabels:
      k8s-app: kube-dns
  template:
    metadata:
      labels:
        k8s-app: kube-dns
    spec:
      priorityClassName: system-cluster-critical
      serviceAccountName: coredns
      tolerations:
        - key: "CriticalAddonsOnly"
          operator: "Exists"
      nodeSelector:
        kubernetes.io/os: linux
      affinity:
         podAntiAffinity:
           preferredDuringSchedulingIgnoredDuringExecution:
           - weight: 100
             podAffinityTerm:
               labelSelector:
                 matchExpressions:
                   - key: k8s-app
                     operator: In
                     values: ["kube-dns"]
               topologyKey: kubernetes.io/hostname
      containers:
      - name: coredns
        image: coredns/coredns:1.10.1
        imagePullPolicy: IfNotPresent
        resources:
          limits:
            memory: 170Mi
          requests:
            cpu: 100m
            memory: 70Mi
        args: [ "-conf", "/etc/coredns/Corefile" ]
        volumeMounts:
        - name: config-volume
          mountPath: /etc/coredns
          readOnly: true
        ports:
        - containerPort: 53
          name: dns
          protocol: UDP
        - containerPort: 53
          name: dns-tcp
          protocol: TCP
        - containerPort: 9153
          name: metrics
          protocol: TCP
        securityContext:
          allowPrivilegeEscalation: false
          capabilities:
            add:
            - NET_BIND_SERVICE
            drop:
            - all
          readOnlyRootFilesystem: true
        livenessProbe:
          httpGet:
            path: /health
            port: 8080
            scheme: HTTP
          initialDelaySeconds: 60
          timeoutSeconds: 5
          successThreshold: 1
          failureThreshold: 5
        readinessProbe:
          httpGet:
            path: /ready
            port: 8181
            scheme: HTTP
      dnsPolicy: Default
      volumes:
        - name: config-volume
          configMap:
            name: coredns
            items:
            - key: Corefile
              path: Corefile
---
apiVersion: v1
kind: Service
metadata:
  name: kube-dns
  namespace: kube-system
  annotations:
    prometheus.io/port: "9153"
    prometheus.io/scrape: "true"
  labels:
    k8s-app: kube-dns
    kubernetes.io/cluster-service: "true"
    kubernetes.io/name: "CoreDNS"
spec:
  selector:
    k8s-app: kube-dns
  clusterIP: 10.96.0.2
  ports:
  - name: dns
    port: 53
    protocol: UDP
  - name: dns-tcp
    port: 53
    protocol: TCP
  - name: metrics
    port: 9153
    protocol: TCP

EOF

# 部署
kubectl apply -f coredns.yaml

#验证dns域名解析是否正常
kubectl get pods -n kube-system

[root@k8s-node1 kubernetes]#  dig -t a www.baidu.com @10.96.0.2

8.4. 部署应用验证

测试是否能访问

kubectl create ns test-nginx

kubectl create deploy  my-nginx --image=nginx:1.28.0 -n test-nginx --dry-run -o yaml >> my-nginx.yaml

kubectl apply -f my-nginx.yaml

kubectl expose deployment my-nginx --port=80 --target-port=80 --type=NodePort -n test-nginx --dry-run -o yaml >> nginx-svc.yaml

kubectl apply -f nginx-svc.yaml

[root@host51 ~]# kubectl get svc -n test-nginx
NAME       TYPE       CLUSTER-IP   EXTERNAL-IP   PORT(S)        AGE
my-nginx   NodePort   10.96.7.73   <none>        80:30872/TCP   19s
[root@host51 ~]#
[root@host51 ~]# curl -ivk http://192.168.120.50:30872/
*   Trying 192.168.120.50:30872...
* Connected to 192.168.120.50 (192.168.120.50) port 30872 (#0)
> GET / HTTP/1.1
> Host: 192.168.120.50:30872
> User-Agent: curl/7.71.1
> Accept: */*
>
* Mark bundle as not supporting multiuse
< HTTP/1.1 200 OK
HTTP/1.1 200 OK
< Server: nginx/1.28.0
Server: nginx/1.28.0

9. 参考

9.1. kube-prometheus-stack 中 grafana-sc-datasources 错误记录

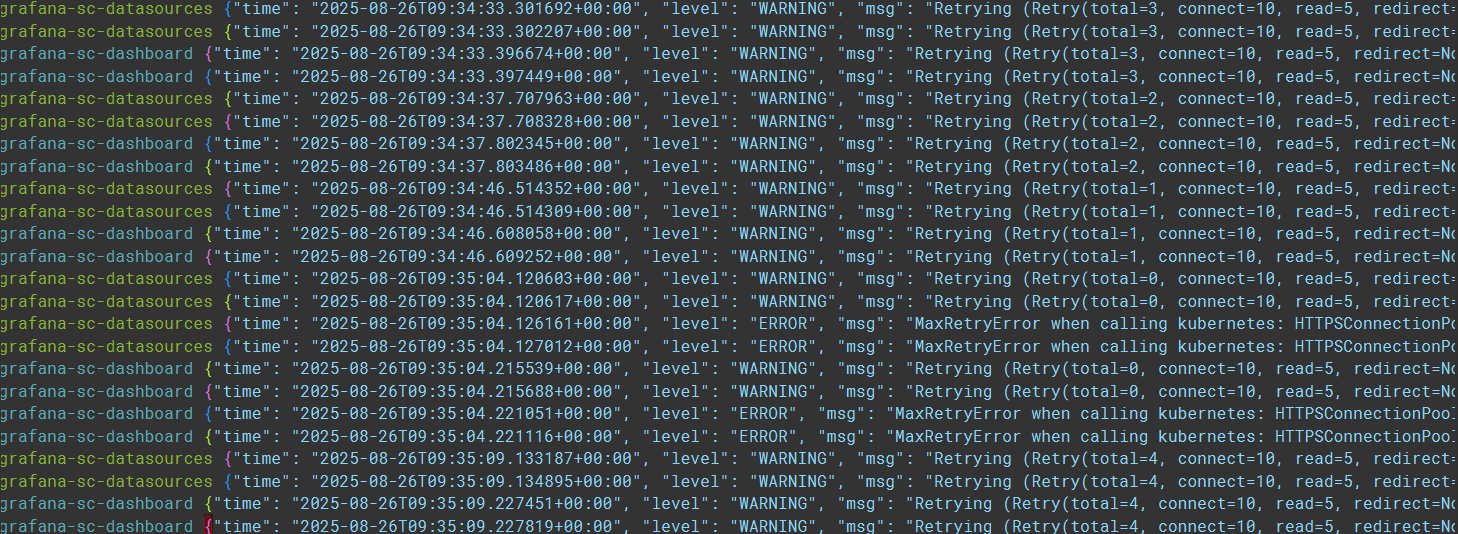

最近 arm 架构部署的二进制 k8s，使用 kube-prometheus-stack 部署全家桶，其他业务正常情况下，就 grafana下 grafana-sc-dashboard 和 grafana-sc-datasources 出现异常，因为是二进制部署 CA 证书都自签名的，导致 pod（k8s-sidecar）出现 CERTIFICATE_VERIFY_FAILED 错误，数据源与大盘图都无法进行正常加载。搞了一下午也没修复，后续也是看 helm 的对应 chart 源码才解决。

{"time": "2025-08-26T07:11:48.733288+00:00", "level": "ERROR", "msg": "MaxRetryError when calling kubernetes: HTTPSConnectionPool(host='10.96.0.1', port=443):

Max retries exceeded with url: /api/v1/namespaces/monitoring/configmaps?labelSelector=grafana_dashboard%3D1&timeoutSeconds=60&watch=True

(Caused by SSLError(SSLCertVerificationError(1, '[SSL: CERTIFICATE_VERIFY_FAILED] certificate verify failed: self signed certificate (_ssl.c:992)')))\n"}

{"time": "2025-08-26T07:11:48.733467+00:00", "level": "ERROR", "msg": "MaxRetryError when calling kubernetes: HTTPSConnectionPool(host='10.96.0.1', port=443):

Max retries exceeded with url: /api/v1/namespaces/monitoring/secrets?labelSelector=grafana_dashboard%3D1&timeoutSeconds=60&watch=True

(Caused by SSLError(SSLCertVerificationError(1, '[SSL: CERTIFICATE_VERIFY_FAILED] certificate verify failed: self signed certificate (_ssl.c:992)')))\n"

解决方案

通过查看 helm chart 源码，发现直接添加此参数就行。

{{- if .Values.sidecar.skipTlsVerify }}
- name: SKIP_TLS_VERIFY
value: "{{ .Values.sidecar.skipTlsVerify }}"
{{- end }}

在 value.yaml 添加再出现跑即可解决：

grafana:
  sidecar:
   skipTlsVerify: true

错误，不生效记录

下午通过各种验证方法都不行其中包括设置env也不生效，升级版本也不行

无效1：

sidecar:
  args:
    - --insecure-skip-tls-verify=true

无效2：

sidecar:
  args:
    - --kube-ca-file=/var/run/secrets/kubernetes.io/serviceaccount/ca.crt
    - --kube-token-file=/var/run/secrets/kubernetes.io/serviceaccount/token

无效3：

grafana:
  sidecar:
    dashboards:
      enabled: true
      env:
        - name: SKIP_TLS_VERIFY
          value: "true"
    extraArgs:
      - --insecure-skip-tls-verify

无效4：

sidecar:
    dashboards:
      enabled: true
      label: grafana_dashboard
      extraEnv:
        - name: KUBERNETES_SKIP_TLS_VERIFY
          value: "true"
        - name: KUBERNETES_SERVICE_HOST
          value: "10.96.0.1"
        - name: KUBERNETES_SERVICE_PORT
          value: "443"
    datasources:
      enabled: true
      label: grafana_datasource
      extraEnv:
        - name: KUBERNETES_SKIP_TLS_VERIFY
          value: "true"
        - name: KUBERNETES_SERVICE_HOST
          value: "10.96.0.1"
        - name: KUBERNETES_SERVICE_PORT
          value: "443"

空间快捷链接

页面树结构

1. 前言

1.1. 软件环境

2. 操作系统初始化配置

2.1. 安装依赖包

2.2. 集群 ip 映射

2.3. 关闭防火墙,关闭 selinux，禁用 swap 分区

2.4. 禁用 linux 的透明大页、标准大页

2.5. 文件数设置

2.6. linux 内核参数调优

2.7. 加载网桥过滤模块

2.8. 时间同步

3. 部署 Etcd 集群

3.1. 准备证书

3.2. 部署 Etcd 集群

4. 安装 Docker 和 cri-dockerd

4.1. 部署 docker

4.2. 部署 cri-dockerd

5. 部署负载均衡

5.1. nginx 安装和配置，主从服务都需要安装

5.2. keepalived 安装和配置

6. kubernetes 集群部署

6.1. 下载并解压安装包

6.2. 部署 kube-apiserver

6.3. 部署 kube-controller-manager

6.4. 部署 kube-scheduler

6.5. 部署kubectl

7. 工作节点（worker node）部署

7.1. 部署kubelet

7.2. 部署kube-proxy

8. 网络组件部署 Calico（部署 CNI 网络）

8.1. 部署插件

8.2. 授权 apiserver 访问 kubelet

8.3. 部署 CoreDNS

8.4. 部署应用验证

9. 参考

9.1. kube-prometheus-stack 中 grafana-sc-datasources 错误记录

空间快捷链接

页面树结构

2303-k8s 二进制安装 v1.28 -arm64

1. 前言

1.1. 软件环境

2. 操作系统初始化配置

2.1. 安装依赖包

2.2. 集群 ip 映射

2.3. 关闭防火墙,关闭 selinux，禁用 swap 分区

2.4. 禁用 linux 的透明大页、标准大页

2.5. 文件数设置

2.6. linux 内核参数调优

2.7. 加载网桥过滤模块

2.8. 时间同步

3. 部署 Etcd 集群

3.1. 准备证书

3.2. 部署 Etcd 集群

4. 安装 Docker 和 cri-dockerd

4.1. 部署 docker

4.2. 部署 cri-dockerd

5. 部署负载均衡

5.1. nginx 安装和配置，主从服务都需要安装

5.2. keepalived 安装和配置

6. kubernetes 集群部署

6.1. 下载并解压安装包

6.2. 部署 kube-apiserver

6.3. 部署 kube-controller-manager

6.4. 部署 kube-scheduler

6.5. 部署kubectl

7. 工作节点（worker node）部署

7.1. 部署kubelet

7.2. 部署kube-proxy

8. 网络组件部署 Calico（部署 CNI 网络）

8.1. 部署插件

8.2. 授权 apiserver 访问 kubelet

8.3. 部署 CoreDNS

8.4. 部署应用验证

9. 参考

9.1. kube-prometheus-stack 中 grafana-sc-datasources 错误记录
